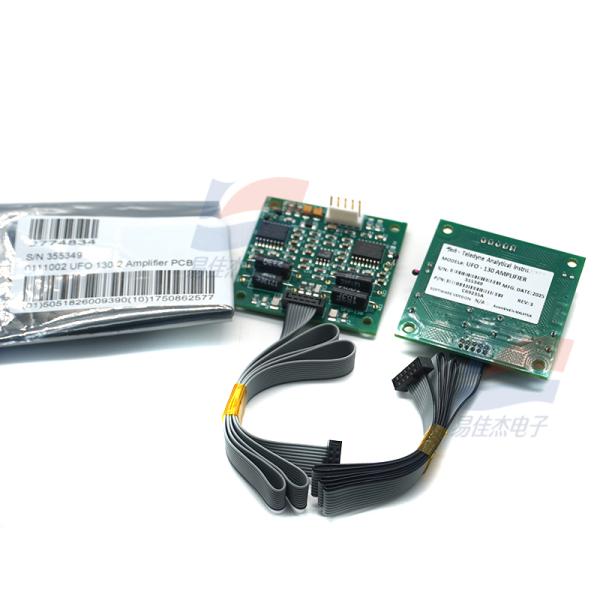

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

UFO 130-2 Oxygen Sensor PCB Module For Medical Fields Like Metabolic Function Testing Equipment Intensive - Care Monitors

Product Features:

1. High - precision Measurement: It features a measuring range of 1% - 100% oxygen. When calibrated in air and 100% oxygen under constant temperature and pressure, its accuracy is within ±1.0% oxygen, and the resolution can reach 0.1%, which is able to precisely capture slight fluctuations in oxygen concentration.
2. Quick Response: At a gas flow rate of 200±100 cc/min, it can finish a 10 - 90% oxygen percentage step - change within 130 milliseconds. Slower gas flow rates will make the response a bit slower.
3. Stable Performance: The sensor is immune to shock, vibration and physical impacts. Its operating humidity range is 0 - 99% relative humidity (non - condensing), and the working ambient pressure is 550 - 800 mm Hg. Its continuous operating temperature is 15 - 40°C, and it can tolerate up to 50°C for less than 2 hours a day, with stable operation under a wide array of environmental conditions.
4. Low - power Consumption Design: It requires a supply voltage of +11.8 VDC to +16.0 VDC and -11.8 VDC to -16.0 VDC, and its power consumption is less than 200 mW, which is an energy - saving and environment - friendly design.
5. Compact and Portable: The sensor itself is 2 5/8 inches long and 1 3/16 inches wide, weighing less than 2.5 ounces (about 40.9g). The size of the PCB board is 2×2 inches, with a board weight of under 1.5 ounces (about 42.5g). The whole set is small and lightweight, which is easy to install and carry.
6. Good Compatibility: It has an inlet port that connects to a tube with an outer diameter of 1/16 inches, and an outlet port equipped with a Luer connector, which is convenient for connection with different gas pipeline systems.
7. Long Service Life: Under the conditions of 25°C and 50% relative humidity in the air, the expected service life of the sensor is 24 months, which can reduce the frequency of equipment maintenance and replacement.
8. Compliance with Standards: The product meets ISO7767 (1997), ASTM F1462 - 93 standards, and also conforms to the CE medical device directive, which can meet the application requirements in a variety of regulated scenarios.

Application Scope:

It is extremely suitable for medical fields like metabolic function testing equipment and intensive - care monitors. Besides, it is also extensively used in environmental monitoring instruments, gas detectors, water quality detectors, and scientific research laboratory equipment, which are used to measure the oxygen content in gas samples.
